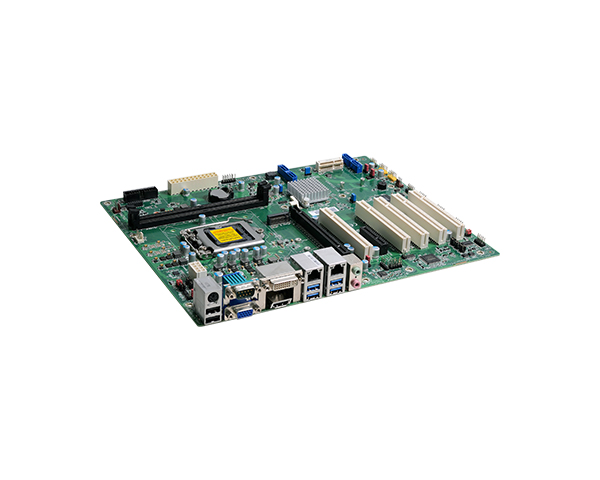

DFI-KD630-H110

7th Gen Intel? Core?/Pentium?/Celeron? LGA 1151 Socket Processors with TDP up to 95W:
Intel? Core? i7-7700K (4 Cores, 8M Cache, up to 4.5 GHz); 91W (Non-LTS)
Intel? Core? i7-7700 (4 Cores, 8M Cache, up to 4.2 GHz); 65W
Intel? Core? i7-7700T (4 Cores, 8M Cache, up to 3.8 GHz); 35W
Intel? Core? i5-7500 (4 Cores, 6M Cache, up to 3.8 GHz); 65W
Intel? Core? i5-7500T (4 Cores, 6M Cache, up to 3.3 GHz); 35W
Intel? Core? i3-7101E (2 Cores, 3M Cache, 3.9 GHz); 65W
Intel? Core? i3-7101TE (2 Cores, 3M Cache, to 3.4 GHz); 35W
6th Gen Intel? Core?/Pentium?/Celeron? LGA 1151 Socket Processors with TDP up to 95W:
Intel? Core? i7-6700K (Cores, 8M Cache, up to 4.2 GHz); 91W (Non-LTS)
Intel? Core? i7-6700 (4 Cores, 8M Cache, up to 4.0 GHz); 65W
Intel? Core? i7-6700TE (4 Cores, 8M Cache, up to 3.4 GHz); 35W
Intel? Core? i5-6500 (4 Cores, 6M Cache, up to 3.6 GHz); 65W
Intel? Core? i5-6500TE (4 Cores, 6M Cache, up to 3.3 GHz); 35W
Intel? Core? i3-6101E (2 Cores, 4M Cache, 3.7 GHz); 65W
Intel? Core? i3-6101TE (2 Cores, 4M Cache, to 2.7 GHz); 35W
Intel? Pentium? G4400 (2 Cores, 3M Cache, 3.3 GHz); 65W
Intel? Pentium? G400TE (2 Cores, 3M Cache, 2.9 GHz); 35W
Intel? Celeron? G3900 (2 Cores, 2M Cache, 2.8 GHz); 65W
Intel? Celeron? G3900TE (2 Cores, 2M Cache, 2.6 GHz); 35W

Intel? H110 Chipset

Two 288-pin UDIMM up to 32GB
Dual Channel DDR4 up to 2666MHz
Core? i5/i7 only support non-ECC

Insyde SPI 128Mbit

Intel? HD Gen 9 Graphics

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI1.4b: resolution up to 4096x2160 @ 24Hz

VGA + DVI-I / VGA + HDMI / DVI-I + HDMI

1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 2)
5 x PCI
1 x M.2 2242/2260/2280 M key (PCIe Gen2 x 4 NVMe, share with PCIe x4 slot)
1 x mSATA (Share with SATA connector)

Realtek ALC888S-VD2-GR

1 x Intel? I211AT (10/100/1000Mbps)
1 x Intel? I219V (10/100/1000Mbps)

2 x GbE (RJ-45)

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

4 x USB 3.1 Gen1
2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x VGA
1 x DVI-I (DVI-D signal)
1 x HDMI

1 x Line-in (opt., MOQ required)
1 x Line-out
1 x Mic-in

1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)

4 x USB 2.0 (2.54mm pitch) or
up to 2 x Vertical USB 2.0 (type A) (opt., MOQ required)

1 x Audio
1 x S/PDIF

4 x SATA 3.0 (up to 6Gb/s)

1 x 8-bit DIO

1 x LPC (supports LPC EXT-RS232/RS485 module)

1 x SMBus

System Reset, Programmable via Software from 1 to 255 Seconds

Infineon TPM2.0/1.2 (opt., MOQ required)

ATX

8-pin ATX 12V power 24-pin ATX power

Typical: i7-7700K: 3.3V @ 0.28A (0.924W); 5V @ 0.36A (1.8W); 12V @ 0.17A (2.04W)
Max.: i7-7700K:3.3V @ 0.29A (0.957W); 5V @ 1.22A (6.1W); 12V @ 10.13A (121.56W)

CR2032 Coin Cell

Windows 7 32/64-bit (6th Gen Intel? Core?/Pentium?/Celeron? processors only)
Window 8.1 64-bit (6th Gen Intel? Core?/Pentium?/Celeron? processors only)
Windows 10 64-bit

Linux

Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

Operating: 5 to 90% RH
Storage: 5 to 90% RH

537,439 hrs @ 25℃; 306,531 hrs @ 45℃; 192,776 hrs @ 60℃; 164,675 hrs @ 65℃

ATX Form Factor 305mm (12") x 244mm (9.6")

PCB: 1.6mm
Top Side: 38.1mm, Bottom Side: 3mm

CE, FCC, RoHS

1 KD630-H110 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-SD6300-001G
1 M.2 standoff A33-725019-090G
1 M.2 Screw A32-112016-041G
1 Mini PCIe Screw A32-112016-041G
